Introduction to SMath Studio
What is SMath Studio?
Imagine you have a magical notebook where you can write down math problems, and it solves them for you instantly! That’s what SMath Studio is—it’s like a super-smart math helper on your computer or tablet. What Can You Do with SMath Studio?
Solve Math Problems: You can type in math questions like 2 + 2 or 5 × 10, and it will give you the answer right away.
Draw Graphs: If you want to see what a math equation looks like, SMath Studio can draw it as a picture (like a line or a curve).
Use Cool Math Tools: It has special tools for things like fractions, square roots, and even solving tricky problems like algebra or geometry.
Play with Units: You can add units like meters, seconds, or kilograms to your calculations, so it’s like doing science experiments too!
Why Is It Fun?
It’s like having a robot friend who loves math and helps you with your homework. You can explore big, complicated problems and see how they work. It’s free, so you don’t need to spend money to use it.
How Does It Work?
You type your math problem into the program. SMath Studio thinks for a second (like a brainy calculator). It shows you the answer or draws a graph to help you understand.

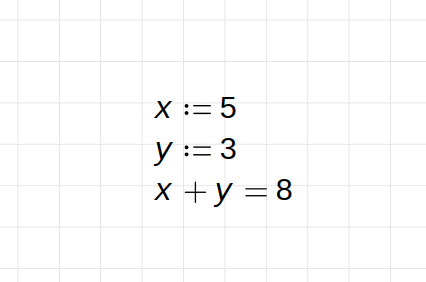

Example 1
If you type:
\[x = 5\] \[y = 3\]Then if you type this
\[x+y=\]you will get the answer
\[x+y=8\]
Example 2
For simple calculation with units it will be like this, Here I’m using Ohm’s law to find the current following through the resistor
\[V = 10V\] \[R = 200 ohm\]Then the formula for Current is

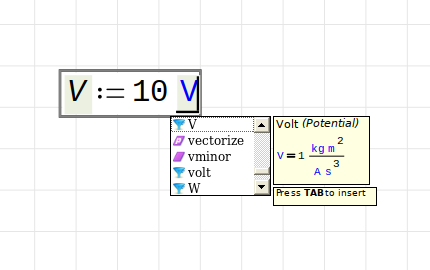

\[I={V \over R}\]In SMath studio, When you type \(V = 10V\), it will show a drop down menu select correct unit and press Tab and enter then you entered the parmeter and next is type the new parameter

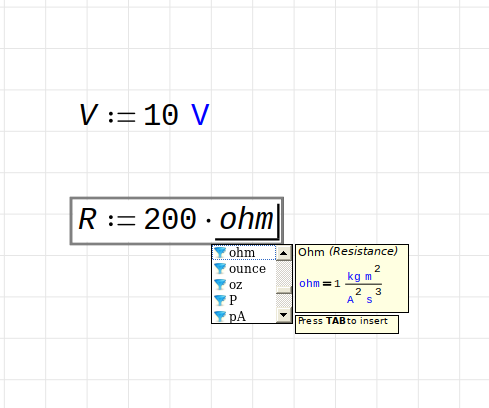

Same for resistor R,
Next,use the formula

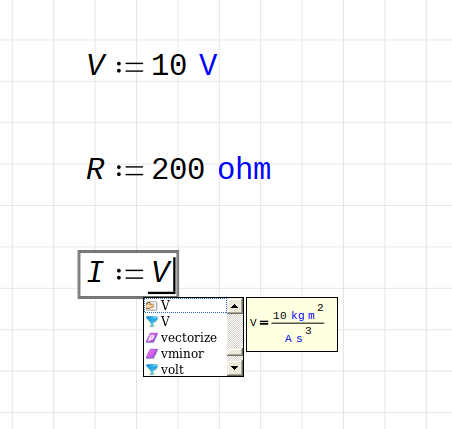

While calling the existing variable it will appear in the drop down list, Simple press the tab to select the variable, In this is case it is V and R

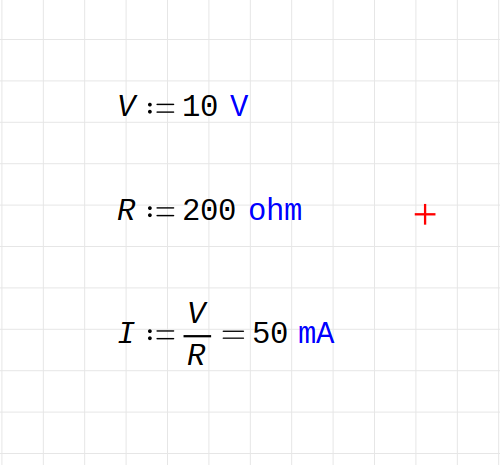

Here you can see after you put “=” it suddenly showing the answer with units!

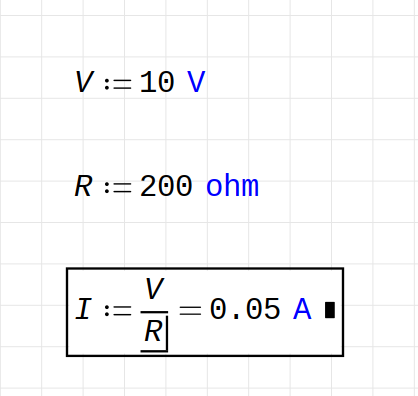

You can change the unit like this, Press Tab.
Final result,
Example 3
It will draw a wavy line (like a wave in the ocean) to show you what the math looks like.
So, SMath Studio is like a fun, smart tool that makes math easier and more exciting! You can use it to learn, explore, and even impress your friends with cool math tricks. 😊
Installation
Step 1: Download SMath Studio
Open your web browser and go to the official SMath Studio website: here.
Navigate to the “Download” section.
Choose the version of SMath Studio that matches your operating system (e.g., Windows, Linux, or Android).
Click the download link to save the installer file to your computer.
Step 2: Install SMath Studio
For Windows:
Locate the downloaded installer file (e.g., SMathStudioDesktop.exe).
Double-click the file to start the installation process.
Follow the on-screen instructions:
Choose the installation directory (or use the default location).
Agree to the terms and conditions.
Click Install.
Once the installation is complete, click Finish.
For Linux:
Download the .deb or .tar.gz file from the SMath Studio website.
For .deb files, use your package manager (e.g., sudo dpkg -i filename.deb).
For .tar.gz files, extract the archive and run the executable file inside.
For Android:
Download the APK file from the SMath Studio website.
Enable installation from unknown sources in your device settings.
Open the APK file and follow the installation prompts.
Step 3: Launch SMath Studio
After installation, open SMath Studio from your Start menu (Windows), applications menu (Linux), or home screen (Android).
The interface will open with a blank worksheet, ready for calculations.
Step 4: Familiarize Yourself with the Interface
Worksheet Area: This is where you type your equations and perform calculations.
Toolbar: Contains buttons for common operations like saving, copying, and pasting.
Functions Panel: On the right side, you’ll find a list of mathematical functions and constants.
Units Panel: Allows you to add units (e.g., meters, seconds) to your calculations.
Step 5: Perform Basic Calculations
Type a simple equation, such as 2 + 3.
Press Enter or click outside the equation box to see the result.
Try more advanced calculations, such as:
sqrt(16) (square root)
sin(pi/2) (sine function)
integral(x^2, x, 0, 1) (definite integral)
Step 6: Save Your Work
Click the Save button (floppy disk icon) or press Ctrl + S.
Choose a location on your computer and save the file with a .sm extension.
Step 7: Explore Advanced Features
Graphing: Use the plot function to create graphs (e.g., plot(sin(x), x)).
Symbolic Calculations: Solve equations symbolically (e.g., solve(x^2 - 4 = 0, x)).
Units and Constants: Use built-in units (e.g., 5m + 3cm) or constants (e.g., pi, e).
Step 8: Install Plugins (Optional)
Go to the Plugins menu and select Manage Plugins.
Download plugins from the SMath Studio website or other sources.
Install the plugins to extend SMath Studio’s functionality.
Step 9: Practice and Learn
Experiment with different mathematical functions and features.
Refer to the official documentation or online tutorials for more advanced usage.
That’s it! You’ve successfully installed and started using SMath Studio. Let me know if you need help with specific calculations or features! 😊 I’ll post my calculations or derrivation which is used in my designs will posted on another page.
